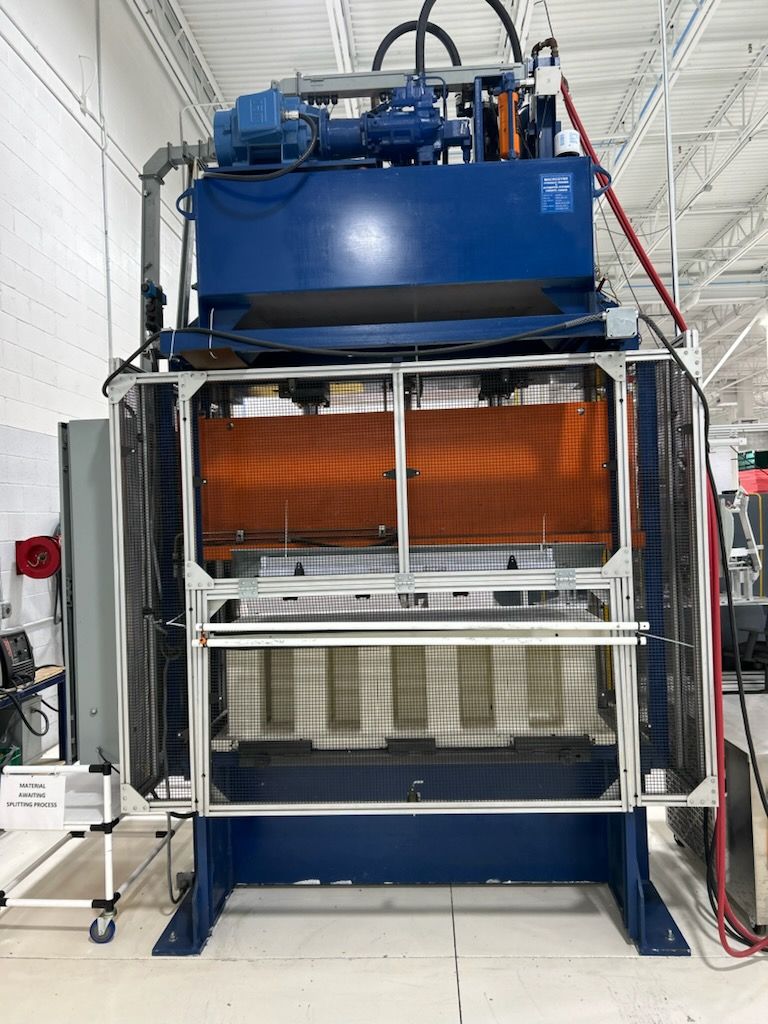

50 Ton Macrodyne Hydraulic Press

• Capacity: 50 Tons
• Year: 2008
• Max Return Force: 1.5 Tons
• Usable Bed Size: 72" x 30"
• Usable Slide Size: 72" x 30"
• Distance Between Columns: 72" L to R
• Distance Between Columns: 22" F to B
• Open Daylight: 36"
• Closed Daylight: 16"
• Stroke: 20"
• Width of Press: 80" R to L
• Depth of Press: 36"
• Height of Press: 12' 6"
• Floor to Bottom of Bolster: 28"
• Weight of Press: 15,000 lbs
• Approach Speed: 19.5" @ 5.0"/sec
• Pressing Speed: 0.5" @ 5.0"/sec
• Return Speed: 20.0" @ 5.0"/sec
• Hydraulic Systems Operating Pressure: 2.600 psi
• Primary: 15 HP
• Electrical Power: 480 Volts / 3-Phase / 60 Hz
• Control Power: 24 VDC

This machine is used and is being sold as is with no warranty. Some machines may qualify for a 3rd party warranty, please ask. As this is a used machine, we do not offer any refunds or returns.

Please call or email us for more information.

Phone: 616-200-4308 or Email: affordablemachinery@gmail.com

PLEASE NOTE: The shipping & loading cost is at the buyer’s expense (for some reason, we can't specify that with this eCommerce system). The machine is being sold "as is".
